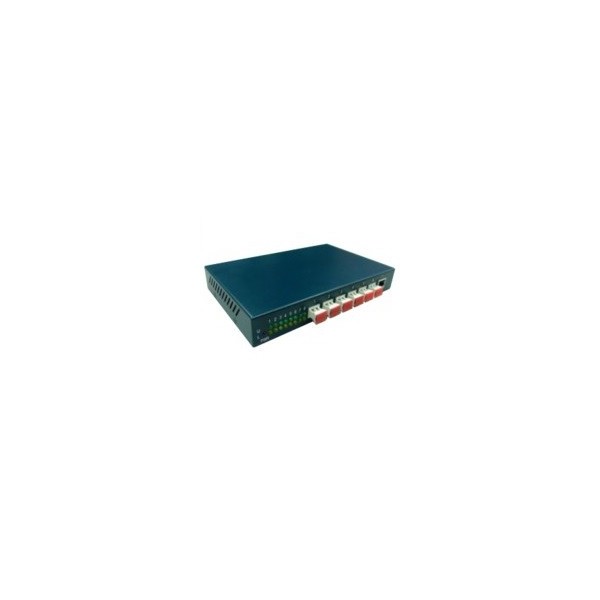

8-Port Switch (6 POF) View larger

6+2 Port Smart Switch 100Mbps


New product

6+2 Port Smart Switch Fast Ethernet 100Mbps
Interfaces: 6x POF Optolock 2,2mm, 2x RJ45
Incl. external power supply and manual

More details

Fr. 414.20 tax incl.

More info

OMS 126S-220 Optical 8-port Switch

The OMS 126S is a Gigabit Ethernet Smart Switch with six optical 100 Mbps POF ports, one 1 Gbps RJ45 interface and one 1 Gbps SFB-Cache interface.

The data transfer is based on the IEEE802.3, IEEE802.3.u, IEEE 802.3.ab and IEEE 802.3z standards.

The POF transmission wavelength is 650nm. The switch is RoHS compliant.

Transmission distance 80m over POF cable according IEC 6073-2 Class A4a2 (as e.g. Mitsubishi Optohome RHEE4002)


Additional product information

Number Optical Ports / Interfaces 6
Standard IEEE 802.3, IEEE 802.3u IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q VLAN und 802.1p QoS
Electrical Data socket 1 x RJ45 Gigabit Ethernet, 1 x SFP Gigabit
Source LED
Wavelength 650nm typ.
Transmission Speed RJ45/SFP 1 Gbps; POF 100 Mbps
Transmission Length 80 m max.
Power Supply 5V DC; 1.6A max.
Operating Temperature 0 to 50 Degree Celcius
Mechanical Dimensions ca. 196 x 30 x 124 mm
Function optimiert für IP-TV und Multimedia; PC und Büronetzwerke
Datasheet Download

The switch has:

  • 6 POF Optolock interfaces 100Mbps
  • 1 RJ45 interface 1 Gbps
  • 1 SFP interface 1 Gbps for glass fiber connection
