Polymer Optical Cable Duplex (POF) Duplex; grau;
Delivery unit:
20m/30m/40m/50m/70m/100m bundle
incl. 1 POF Cutting Tool
fire retardant (VW-1), color: grey, NA: 0.5
outer diameter: 2.2/4.4 mm
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
GHV 4002 G - Polymer Optical Fibre Duplex (bundle incl. POF-Unicut)

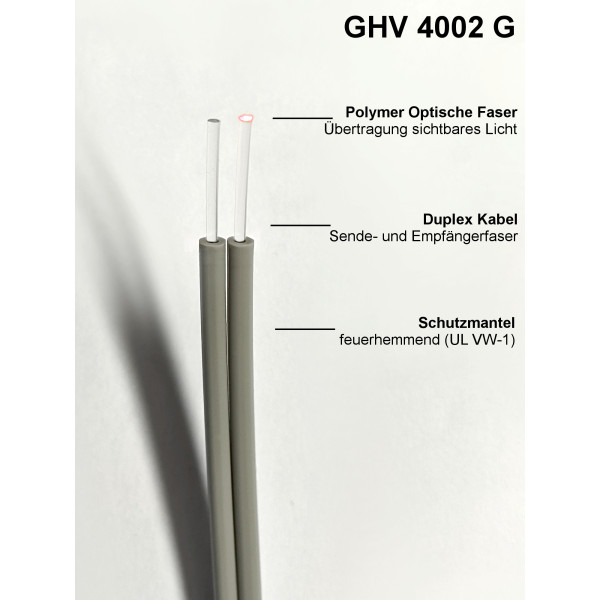

The Polymer Optical Fibre (POF) is an optical fibre for data transmission with visible red light, which is not harmful for eyes. The cable consists of 2 fibres, one for each direction. The fire retardan jacket prevents fire spreding. With a minimum bending radius of 25 mm the cable is easy to install. No splices needed, the system is working with plug connections. Just pay attention for a clean cut, therefore the use of a POF-Unicut cutter is recommended.

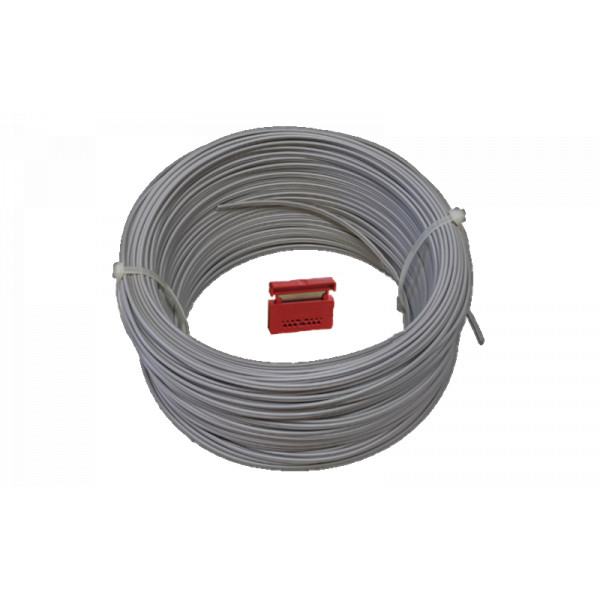

Each bundle includes a POF-Unicut cutting tool.
Area of Application:
All components developed by Homefibre transmit information with the standardized Internet Protocol (IP). Main features of a Homefibre network are high performance, high energy efficiency and secure transmission.
Additional Information:
| POF cable | |
| number fibres | 2 (Duplex) |
| diameter | typ. 2.2mm each fibre |
| cable weight | 11g/m |

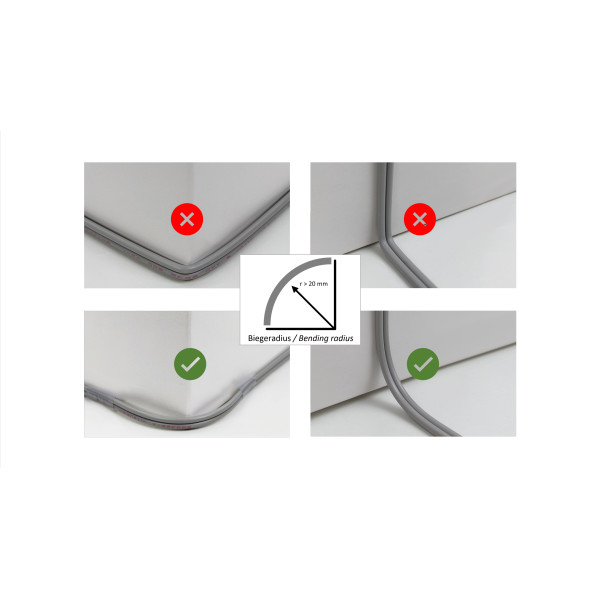

| minimum bending radius | 25mm |
| indication | MITSHUBISHI Chemical AWM 5238 80C VW-1 GHV 4002 |
| Optical Fibre | |
| core material | Polymethyl-Methacrylate Resin |
| jacket material | Polyvinylchloride, grey |
| mode and index profile | Multi Mode with Step index |
| core diameter | typ. 980µm |
| cladding diameter | typ. 1000µm |
| transmission loss | 170dB/km |
| typ. transmission length | 100Mbps: 80m 1Gbps: 50m, with reduced Bit Rate up to 80m |
| certification | IEC 60793-2, A4a.2 |
